Klik Pins

We will be implementing a 22.5% surcharge on all OEM parts effective 7.1.2022.

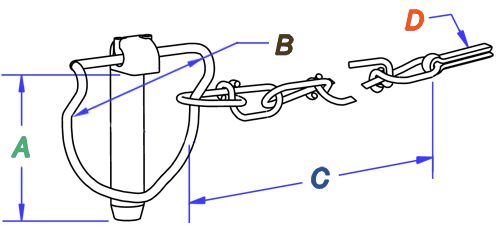

round klik pin schematic
Part ID
Pin Size (in.)
A
Pin Length (in.)
B
Inside Ring Diameter (in.)
C
Chain Length (in.)
D
Cotter Size (in.)
Min. Double Shear Strength (lbs.)
CAD
7637
3/16
1-1/4
1
-
-
6 lbs.
7652
3/16
1-1/4
1
6-1/4
3/32 x 3/4
6 lbs.
1185
1/4
1-3/4
1-5/8
-
-
13 lbs.
1600
1/4
1-3/4
1-3/8
-
-
13 lbs.
1601
1/4
1-3/4
1-3/8
7-3/4
3/16 x 3/4
13 lbs.
34072
5/16
2-11/32
2-1/16
-
-
19 lbs.
7618
5/16
2-11/32
1-5/8
-
-
19 lbs.
7619
5/16
2-11/32
1-5/8
7-3/4
3/16 x 3/4
19 lbs.
flat back klik pin
Part ID
Pin Size (in.)
A
Pin Length (in.)
B
Inside Ring Diameter (in.)
C
Chain Length (in.)
D
Cotter Size (in.)
Min. Double Shear Strength (lbs.)
CAD
317
7/16 x 11/32
1-3/4
1-3/8
7-3/4
3/16 x 3/4
25 lbs.
1533
7/16 x 11/32
1-3/4
1-3/8
-
-
25 lbs.
948
7/16 x 11/32
1-3/4
1-5/8
-
-
25 lbs.
7524
7/16 x 11/32
2
1-7/8
-
-
25 lbs.
7525
7/16 x 11/32
2
1-7/8
7-3/4
3/16 x 3/4
25 lbs.
34046
7/16 x 11/32
2
2-1/16
-
-
25 lbs.
safety lock klik pin
Part ID
Pin Size (in.)
A
Pin Length (in.)
B
Inside Ring Diameter (in.)
C
Chain Length (in.)
D
Cotter Size (in.)
Min. Double Shear Strength (lbs.)
CAD
9655
7/16 x 11/32
2
1-3/4
7-3/4
3/16 x 3/4
25 lbs.
9656
7/16 x 11/32
2
1-3/4
-
-
25 lbs.
special klik pin
Part ID
Pin Size (in.)
A
Pin Length (in.)
B
Inside Ring Diameter (in.)
C
Chain Length (in.)
D
Cotter Size (in.)
Min. Double Shear Strength (lbs.)
CAD
7631
7/16 x 11/32
1-3/4
1-3/8
-
-
25 lbs.
7634
7/16 x 11/32
1-3/4
1-3/8
7-3/4
3/16 x 3/4
25 lbs.
7842
7/16 x 11/32
1-3/4
1-5/8
-
-
25 lbs.
7843
7/16 x 11/32
1-3/4
1-5/8
7-3/4
3/16 x 3/4
25 lbs.
7862
7/16 x 11/32
2
1-5/8
-
-
25 lbs.
