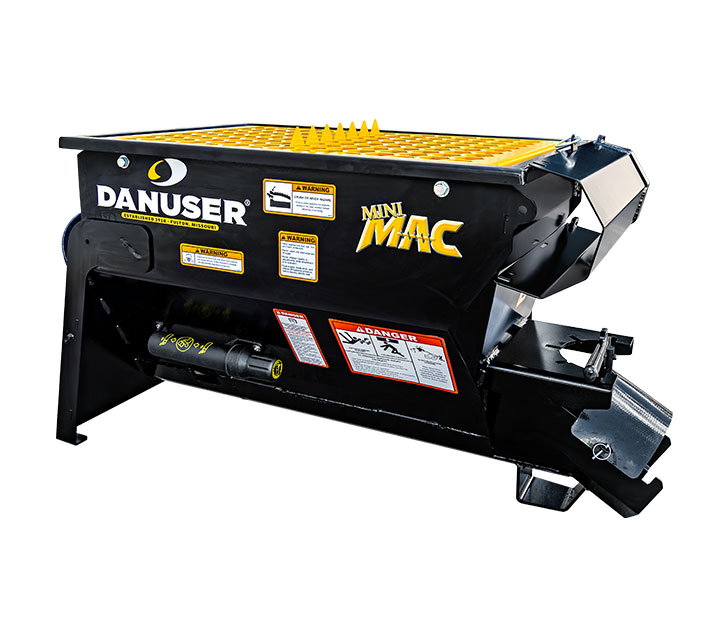

Mini MAC
Mini Mixing & Conveying Material Handling Bucket
Replace manual material mixing in tight spaces!
With a 1/4 yard capacity (6.75 cubic ft.), the Mini MAC is engineered for powerful mixing and precise dispensing in tight spaces like backyards, basements, between buildings, and underground sites. Built for mini-skid-steers, this compact mixing and conveying (MAC) bucket features a quick attach mount on one end and a manual discharge gate on the other—delivering maximum functionality in a minimal footprint.

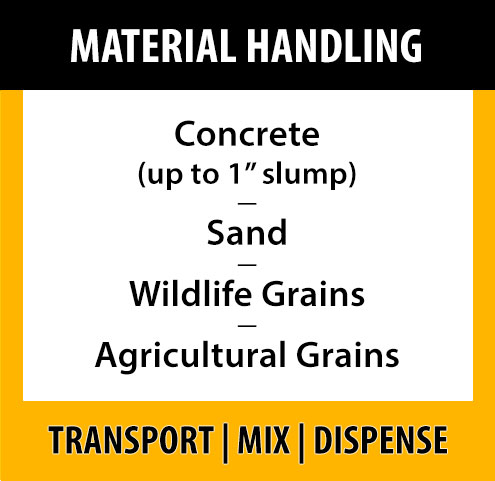

The Mini MAC handles a wide range of materials including concrete (up to 1” slump), sand, wildlife feed, and agricultural grains. Its hybrid auger—made of steel and rubber—ensures efficient mixing while minimizing material seepage. Rubber sealing on the manual gate keeps material contained throughout operation. For easy loading of bagged material, the safety grate has integrated bag-busters.
Each Mini MAC bucket comes standard with one (1) 24" multi-link chute and two (2) hoses with flush-faced couplers (ISO 16028).
Powerful mixing in tight spaces—wherever your mini-track/skid loader can go, the Mini MAC can follow!
FEATURESCompact
Small Foot Print
Can be used in basements, backyards, under ground, between houses, and other tight spaces where larger machines are unable to reach.
Safety Grate
Comes standard with a safety grate, including integrated bag busters for ease of loading.
Mini-Skid-Steer Mount
Available with your choice of mounts: the Common Industry Interface (CII) (PN 230402) or the Bob-Tach® system (PN 230403).
Standards
Comes standard with one (1) 24” multi-link chute and two (2) hoses with flush-faced couplers (ISO 16028).
Options and Specifications
-
Capacity
1/4 yard (6.75 cubic feet)
-
Concrete Mix Capacity (80-lb bags)
Approx. 9 (1/4 yard)
-
Dispense Rate
14 seconds at 24 GPM
-
Hydraulic Requirements
Up to 24 GPM
Up to 3,500 PSI -

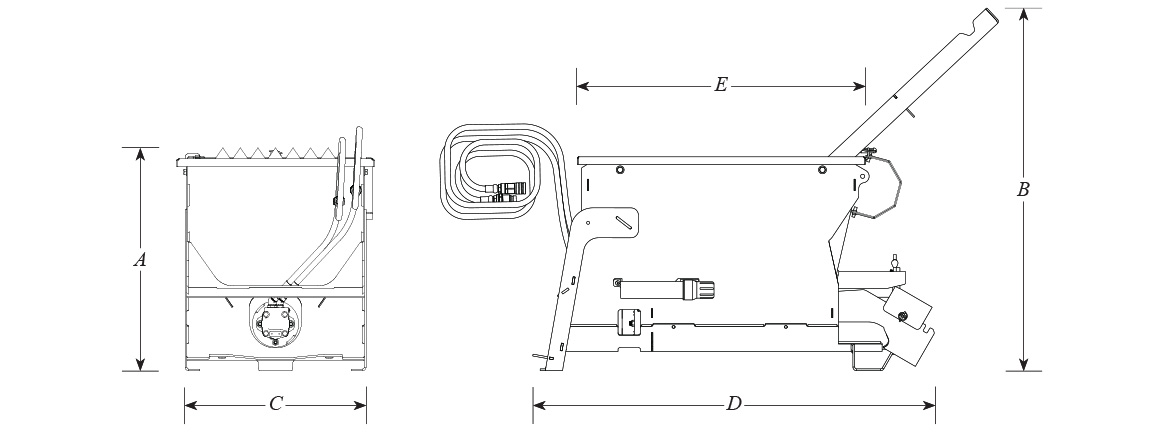

Mounting Options
Common Industry Interface (CII)
-
Height, Grate Lowered (A)
30"
-
Height, Grate Open (B)
48.5"
-
Overall Width (C)
24.5"
-
Overall Length (D)
54"
-
Overall Hopper Length (E)
38.7"
-
Weight
370 lb.
-
Auger Diameter
6.12"
-
Center Column Diameter (inches)
1.32" O.D.
.18" wall -
Auger Length (inches)
27.5"
-
Flighting Spacing (inches)
4"
-
Capacity
1/4 yard (6.75 cubic feet)
-
Concrete Mix Capacity (80-lb bags)
Approx. 9 (1/4 yard)
-
Dispense Rate
14 seconds at 24 GPM
-
Hydraulic Requirements
Up to 24 GPM
Up to 3,500 PSI -

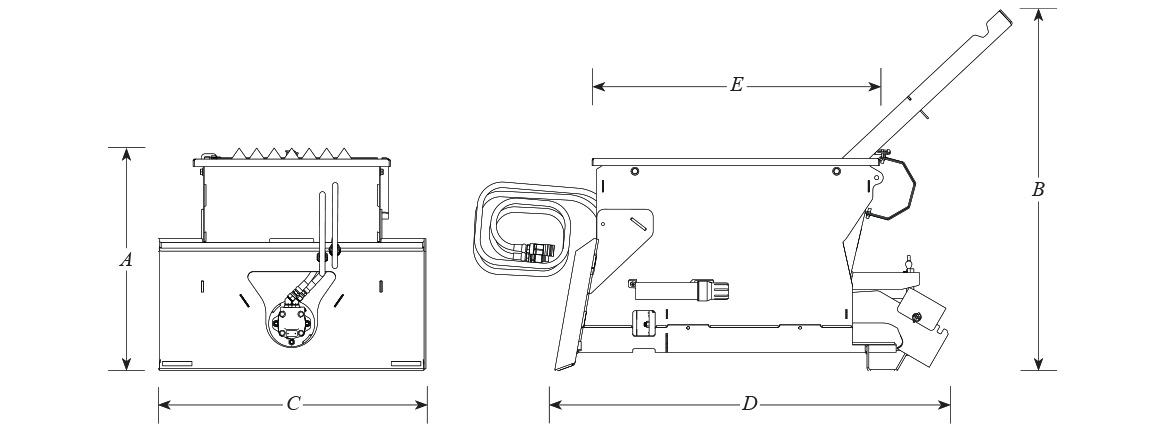

Mounting Options
Bob-Tach® for Mini Track Loaders
-
Height, Grate Lowered (A)
30"
-
Height, Grate Open (B)
48.5"
-
Overall Width (C)
36.5”
-
Overall Length (D)
53”
-
Overall Hopper Length (E)
38.7"
-
Weight
400 lb.
-
Auger Diameter
6.12"
-
Center Column Diameter (inches)
1.32" O.D.
.18" wall -
Auger Length (inches)
27.5"
-
Flighting Spacing (inches)
4"
