Mega Mixer

Mix Scoop Dispense

Eliminate backbreaking labor with the Danuser Mega Mixer!
2 ft
Multi-link Chutes
8"
Diameter Auger
3/4 yard
Material Capacity

Eliminate backbreaking labor with the Danuser Mega Mixer!

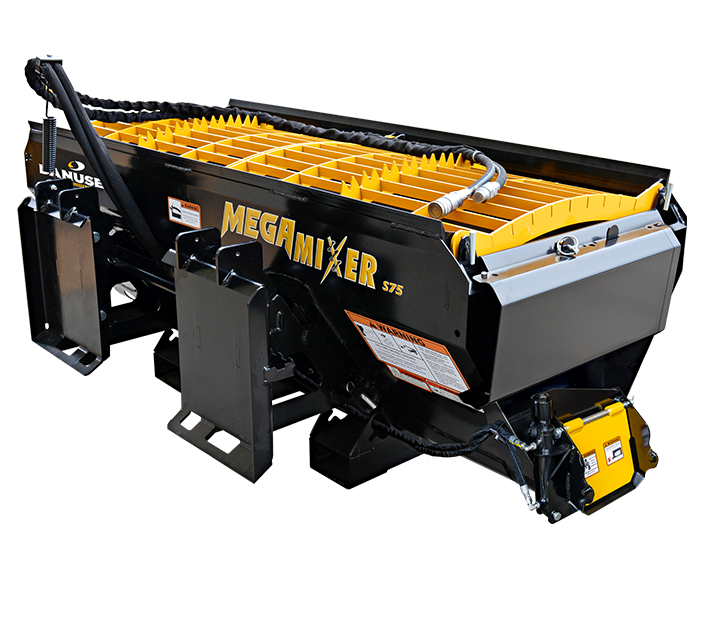

With adjustable mounting brackets and pallet fork tine slots on both sides, conveniently dispense left or right. Built-in cutting edges and a robust design make it well-suited for scooping from piles. Comes standard with dual safety grates, including integrated bag busters, that can be opened individually from either side. With features like chute storage, pin holders, easy-to-read yardage markers, a robust 8" diameter auger coupled directly to a heavy-duty, low-speed, high-torque motor capable of dispensing 3/4 yard of material in 26 seconds (up to 1" diameter rock), the Mega Mixer will save time on the farm or jobsite. Unit ships complete, including hoses and flat face ISO couplers.



FEATURESConvenient

Adjustable Mounting Brackets

Conveniently dispense left or right.

Built-in Cutting Edges

Built-in cutting edges and a robust design make it well-suited for scooping from piles.

Safety Grates

Comes standard with dual safety grates, including integrated bag busters that can be opened individually from either side.

Chutes

Includes two 2' multi-link chutes that store conveniently on the bucket. Additional chutes are available with chain mounting holes for stronger support.

Discharge

A closable discharge end limits spilling and allows for faster material mixing.

Mix Scoop Dispense Mega Mixer

Options and Specifications

Part ID: 170001 - Mega Mixer
  • Capacity

    3/4 yard (20.25 cubic ft., 16.27 bushels)
    Up to 1 yard (27 cubic ft., 21.7 bushels) with optional hopper extension.

  • Concrete Mix Capacity (80-lb bags)

    Approx. 25 (3/4 yard)
    Approx. 35 (1 yard)


  • Dispense Rate

    26 seconds at 25 GPM

  • Hydraulic Requirements

    Up to 25 GPM
    Up to 3,500 PSI

  • Mounting Options

    Skid-Steer
    Pallet Forks
    (Telehandler)

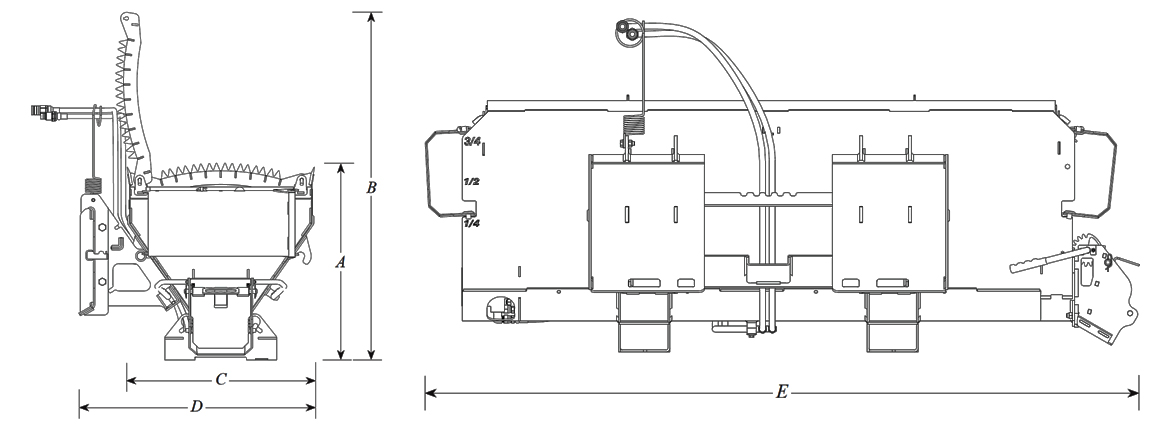

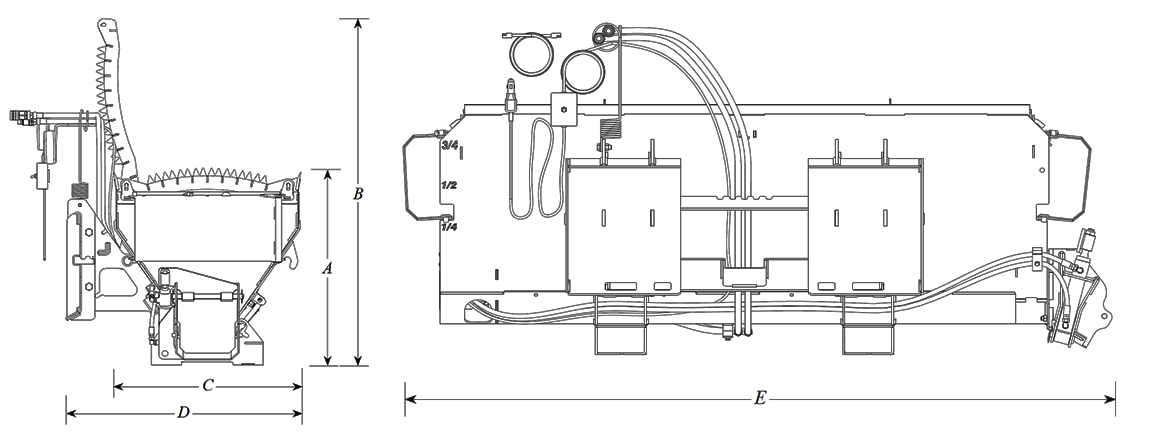

  • Height, Grates Lowered (A) (inches)

    32"

  • Height, Grates Raised (B) (inches)

    57.25"

  • Bucket Width (C) (inches)

    31"

  • Overall Width (D) (inches)

    38.75"

  • Overall Length (E) (inches)

    93.75"

  • Weight

    805 lb.

  • Auger Diameter (inches)

    8"

  • Center Column Diameter (inches)

    2.38" O.D., .22" wall

  • Auger Length (inches)

    70"

  • Auger Flighting Spacing (inches)

    8"

  • Flight Thickness (inches)

    .38"
