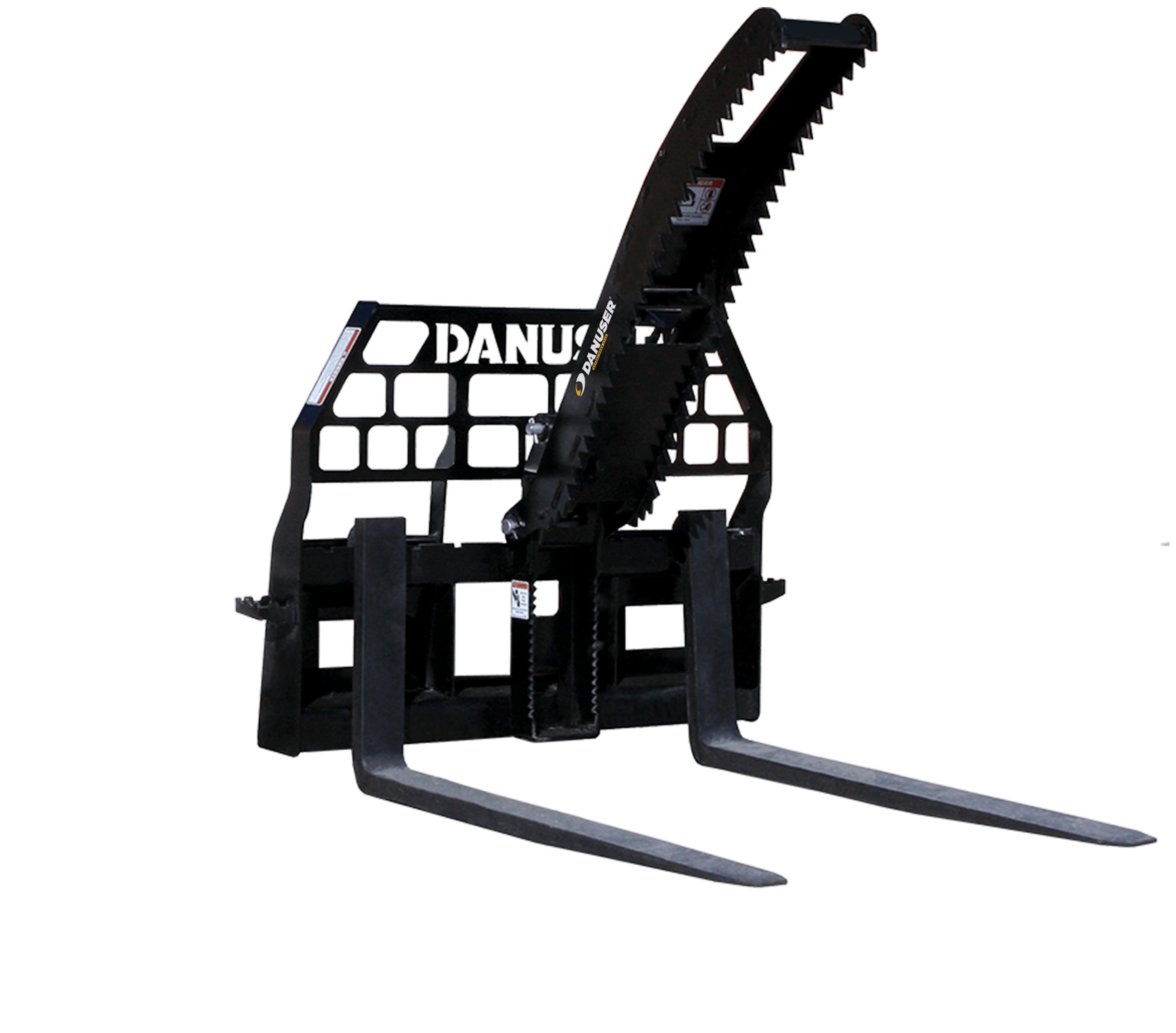

Multi-Purpose Grapple

For Pallet Fork Frames

Gain control of difficult loads and expand what your pallet forks can handle
9,500
lb. of force
55
inches max jaw opening
Fits
Most Pallet Forks

Grab More. Control More. Do More.

Add more control to your pallet forks with the Multi-Purpose Grapple, designed to handle logs, brush, rock, and other hard-to-manage materials during land cleanup and jobsite work. The grapple easily attaches to most carriage-style pallet fork frames, giving you the flexibility to upgrade your existing setup without replacing your entire attachment.

Built-in flow restrictors allow you to precisely control how fast the grapple opens and closes, giving you better handling and smoother operation when securing loads. The design provides strong clamping force to keep materials in place, helping you move and place loads with greater confidence.

When not needed, the grapple can be quickly positioned for standard pallet fork use—so you can switch between tasks without slowing down. It’s a simple way to turn your pallet forks into a more versatile, all-in-one solution for demanding jobs.

FEATURESVersatile

Versatile working options

The Multi-Purpose Grapple can be pinned in an upright position for normal pallet fork use without the hassle of removing the grapple from the frame (no tools required).


Strength

Support and secure loads with up to 9,500 lb. of clamping force and 90 laser-cut teeth.

Adjustable

Tine width may be adjusted to accommodate various loads without interference from the Multi-Purpose Grapple.

Built-in Flow Restrictors

Allow the operator to precisely control the speed in which the Multi-Purpose Grapple opens and closes.


Convenient

Attach the Multi-Purpose Grapple to an existing pallet fork frame.

Multipurpose Grapple Danuser

Options and Specifications

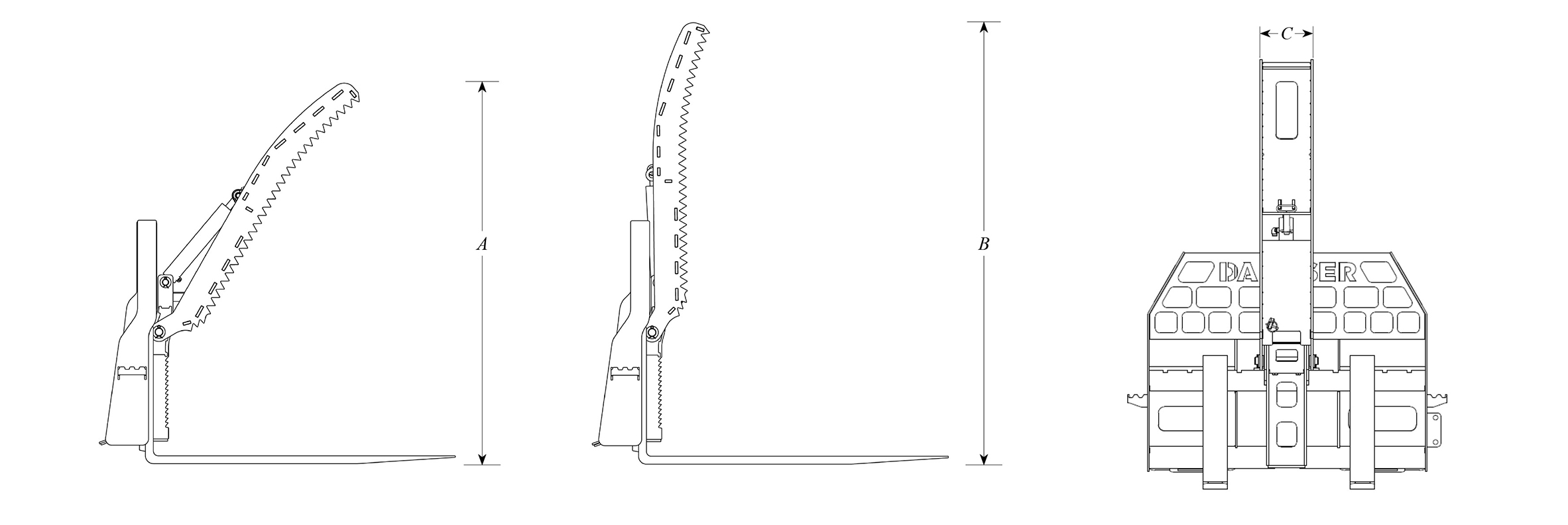

  • Overall Height in Working Position (A) (inches)

    55

  • Overall Height in Pinned Up Position (B) (Inches)

    69.75"

  • Overall Jaw Width (C) (Inches)

    8.63"

  • Clamping Force

    9,500 lbs.

  • Machine Weight

    150 lbs.

  • Overall Height in Working Position (A) (inches)

    55

  • Overall Height in Pinned Up Position (B) (Inches)

    69.75"

  • Overall Jaw Width (C) (Inches)

    8.63"

  • Clamping Force

    9,500 lbs.

  • Machine Weight

    150 lbs.
