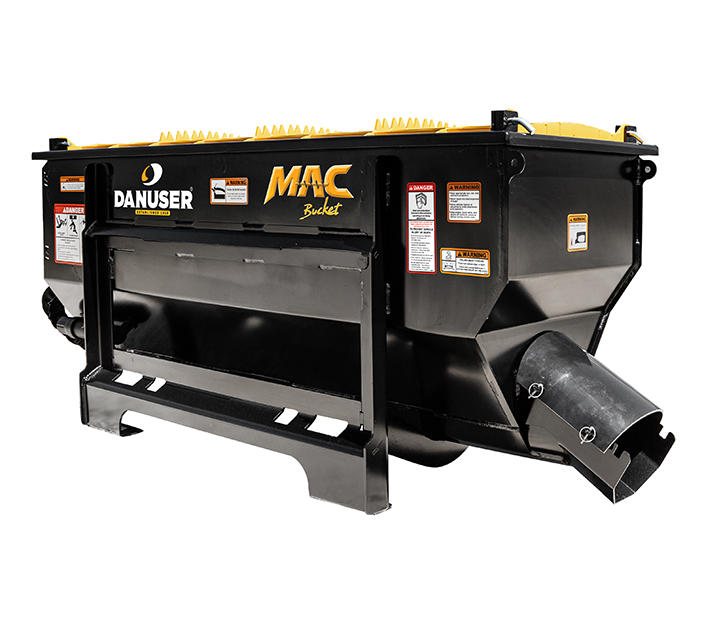

MAC Bucket
Mixing & Conveying Material Handling Bucket
Transport, mix, and dispense concrete, wildlife feed, agricultural grains, gravel, asphalt, and more!
With a 1/2 yard base capacity (13.5 cubic ft.), and a 3/4 yard extended capacity (20 cubic ft.), the MAC Bucket replaces the manual labor of moving and mixing materials and is perfect for tight conditions where larger equipment is not ideal. This mixing and conveying (MAC) bucket features a skid-steer quick attach mount on both sides of the bucket, which allows for discharge from both the left and right sides. It is designed with no discharge gate and with the ability to self-load from loose piles, making the MAC Bucket a true one-person operation. All buckets come standard with two (2) multi-linked chutes (24" long) and two (2) 7' long hoses with flush-faced couplers (ISO 16028).
Choose from two (2) bucket configurations based on your job requirements: MAC Bucket with a rubber auger or MAC Bucket with a steel auger. See the table below to know which option is best for your needs.
For larger applications, check out the Mega Mixer Material Handling Bucket.
FEATURESVersatile
1/2 yard Capacity
The MAC Bucket has a 1/2 yard capacity (13.5 cubic ft.). An optional hopper extension can be added to increase the capacity to 3/4 yard (20 cubic ft.).
Reach
Reach difficult areas for footings, slabs, sidewalks, fence posts, sign posts, deck posts, piers, etc.
Safety Grate
Comes standard with a safety grate, including integrated bag busters, that can be opened from either side of the bucket.
Skid-Steer Mount
Quick attach mount on both sides for left or right discharge.
Standards
All buckets come standard with two (2) multi-linked chutes (24" long) and two (2) 7' hoses with flush-faced couplers (ISO 16028).

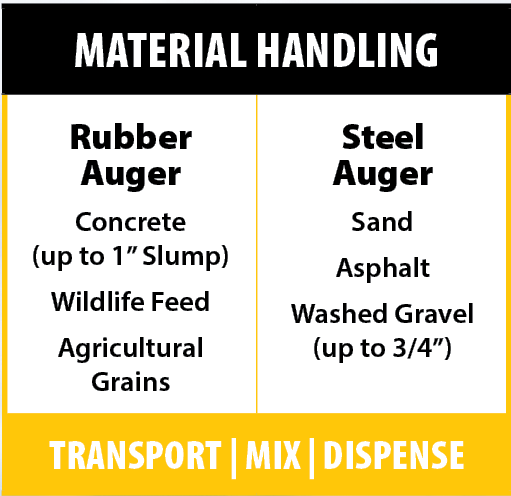

Choice of Auger
Rubber Auger: Select MAC Bucket with Rubber Auger to handle concrete up to 1" slump, wildlife feed, and agricultural grains.
Steel Auger: Select MAC Bucket with Steel Auger to handle sand, asphalt, and washed gravel up to 3/4" diameter.
Options and Specifications
-
Capacity
1/2 yard (13.5 cubic ft.); up to 3/4 yard (20 cubic ft.) with optional hopper extension
-
Concrete Mix Capacity (80-lb bags)
Approx. 18 (1/2 yd)
Approx. 25 (3/4 yd) -
Dispense Rate
28 seconds @ 24 GPM
-
Hydraulic Requirements
Up to 24 GPM
Up to 3,500 PSI -
Mounting Options
Skid-Steer Quick Attach
-

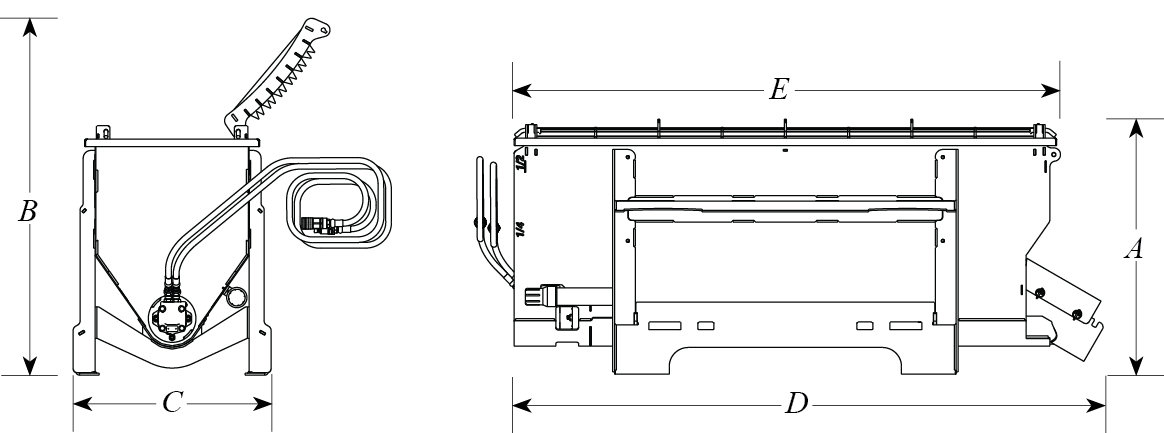

Height, Grate Lowered (A) (inches)
33.5"
-
Height, Grate Open (B) (inches)
47"
-
Overall Width (C) (inches)
26"
-
Overall Length (D) (inches)
77.4"
-
Overall Hopper Length (E) (inches)
71.3"
-
Weight
615 lb.
-
Auger Diameter without Rubber (inches)
4"
-
Auger Diameter with Rubber (inches)
6.5"
-
Center Column Diameter (inches)
1.32" O.D.
.18" wall -
Auger Length (inches)
60"
-
Flighting Spacing (inches)
4"
-
Capacity
1/2 yard (13.5 cubic ft.); up to 3/4 yard (20 cubic ft.) with optional hopper extension
-
Concrete Mix Capacity (80-lb bags)
Approx. 18 (1/2 yd)
Approx. 25 (3/4 yd) -
Dispense Rate
28 seconds @ 24 GPM
-
Hydraulic Requirements
Up to 24 GPM
Up to 3,500 PSI -
Mounting Options
Skid-Steer Quick Attach
-
Height, Grate Lowered (A) (inches)
33.5"
-
Height, Grate Open (B) (inches)
47"
-
Overall Width (C) (inches)
26"
-
Overall Length (D) (inches)
77.4"
-
Overall Hopper Length (E) (inches)
71.3"
-
Weight
620 lb.
-
Auger Diameter with Steel (inches)
6.12"
-
Center Column Diameter (inches)
1.32" O.D.
.18" wall -
Auger Length (inches)
60"
-
Flighting Spacing (inches)
4"
MAC Buckets Gallery
