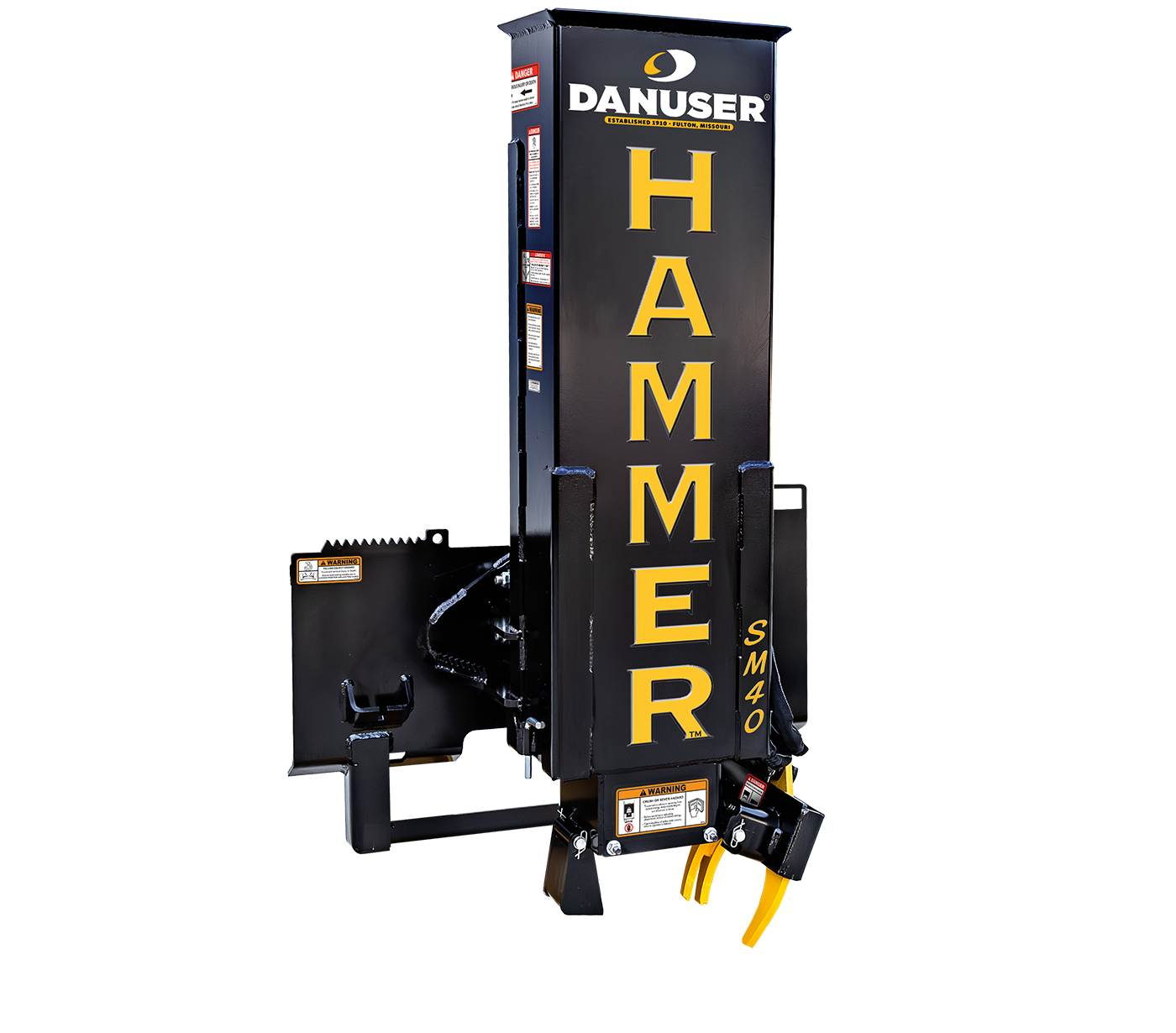

Hammer

Post Driver Series

Drives fence posts, sign posts, guard rails, median dividers, tent stakes, T-posts, pipe fence, and railroad ties with ease.
82,000
lb. of impact Force
35
Strokes Per Minute
300
lb. Hammer Weight

Achieve a full stroke with every cycle or utilize the short stroke feature to fine tune your depth

The Hammer DOES NOT operate with springs, hydraulic cylinder, or return line. Grapple option can be added to any model for a true one-person operation (does not include t-posts). The grapple option will allow the operator to grab the post off the ground, load it into the machine, and drive it in the ground without leaving the skid-steer seat. Tilt option allows up to 20˚ left or right. The hammer weight is 300 lb. from the factory. Additional weight can be added for a total of 500 lb.

FeaturesInnovative

Grapple

Grapple option can be added to any model for a true one-person operation (does not include t-posts). The grapple option will allow the operator to grab the post off the ground, load it into the machine, and drive it in the ground without leaving the skid-steer seat.

Tilt

Tilt option allows up to 20˚ in each direction.

Additional Weight Kit

The hammer weight is 300 lb. from the factory. Additional weight can be added for a total of 500 lb.

Mounts

Skid-Steer, Tractor Front-End Loader Skid-Steer, and Euro/Global are standard mount options.  Backhoe & Excavator custom mounts are available by submitting the form in the Custom Mounts section below.

Hammer Post Driver

Options and Specifications

Postdriver Mount Options
Postdriver Skid-Steer Mount Types
Postdriver Grapple Options
Postdriver Tilt Options
Postdriver Weight Options
  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,025 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25"

  • Overall Height (inches)

    64"

  • Machine Weight

    915 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25"

  • Overall Height (inches)

    64"

  • Machine Weight

    1,115 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,025 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25"

  • Overall Height (inches)

    65"

  • Machine Weight

    955 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25"

  • Overall Height (inches)

    64"

  • Machine Weight

    1,155 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,025 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    1,005 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    1,205 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,025 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    1,045 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    1,245 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,025 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25"

  • Overall Height (inches)

    65"

  • Machine Weight

    948 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25"

  • Overall Height (inches)

    64"

  • Machine Weight

    1,148 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,025 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25"

  • Overall Height (inches)

    65"

  • Machine Weight

    991 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25"

  • Overall Height (inches)

    64"

  • Machine Weight

    1,191 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,025 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    991 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    1,191 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,025 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    1,041 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    45.5"

  • Overall Width (inches)

    25.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    1,241 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,025 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    46"

  • Overall Width (inches)

    27.5"

  • Overall Height (inches)

    64"

  • Machine Weight

    920 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    46"

  • Overall Width (inches)

    27.5"

  • Overall Height (inches)

    64"

  • Machine Weight

    1,080 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,025 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    46"

  • Overall Width (inches)

    27.5"

  • Overall Height (inches)

    64"

  • Machine Weight

    920 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    46"

  • Overall Width (inches)

    27.5"

  • Overall Height (inches)

    64"

  • Machine Weight

    1,120 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,026 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    46"

  • Overall Width (inches)

    27.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    970 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    46"

  • Overall Width (inches)

    27.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    1,170 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    49,000 lb.

  • Impact Energy

    1,026 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    300 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    46"

  • Overall Width (inches)

    27.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    1,010 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

  • Post Dimensions

    T-post to Railroad tie

  • Impact Force

    82,000 lb.

  • Impact Energy

    1,709 ft.-lb.

  • Length of Stroke (inches)

    40"

  • Hammer Weight

    500 lb.

  • Strokes per Minute

    35

  • Overall Length (inches)

    46"

  • Overall Width (inches)

    27.5"

  • Overall Height (inches)

    64"

  • Tilt (left or right) (degrees)

    20°

  • Machine Weight

    1,210 lb.

  • Hydraulic Requirements

    1,500 - 3,000 PSI; 12 - 30 GPM

  • Maximum Post Width (inches)

    8.5" x 9.25"

  • Tractor Requirements

    75 HP Minimum

What our Customers Say
The Hammer is by far the best investment to date I have made on a piece of equipment. We are building fence faster, safer, and easier. Thank you for making a piece of equipment I can use and improve my efficiency and profit on jobs! -Kenneth S., Long Branch Ranch & Ag Service

Literature and Media

Name
PROOF: Hammer Post Driver for Skid Steers & Tractors is the Attachment You Are Looking For
Company Vertical

Warning

This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
