Auger Bucket
Transport Mix Dispense
Transport, mix, and dispense concrete (up to 1” slump), wildlife feed, and agricultural grains.
The Auger Bucket has a ½ yard capacity (13.5 cubic feet) an optional hopper extension can be added to increase the capacity to ¾ yard (20.25 cubic feet). Rubber-flighted design acts as a seal to limit materials leaking out of the bucket. Skid-steer quick attach mount on both sides for left or right discharge. All buckets come standard with one 2’ and one 3’ chute and a 7’ hose kit with flat faced couplers and motor fittings.
FEATURESVersatile
1/2 yard Capacity
The Auger Bucket has a ½ yard capacity (13.5 cubic feet) an optional hopper extension can be added to increase the capacity to ¾ yard (20.25 cubic feet).
Reach
Reach difficult areas for footings, slabs, sidewalks, fence posts, sign posts, deck posts, piers, etc.
Rubber-Flighted
Rubber-flighted design acts as a seal to limit materials leaking out of the bucket.
Skid-Steer
Quick attach mount on both sides for left or right discharge.
Standards
All buckets come standard with one 2’ and one 3’ chute and a 7’ hose kit with flat faced couplers and motor fittings.

Options and Specifications

-
Capacity
1/2 yd (13.5 cubic ft); up to 3/4 yard (20.25 cubic ft) with optional hopper extension.
-
Hydraulic Requirements
12 GPM
2,000 PSI -
Mounting Options
Skid-Steer
-

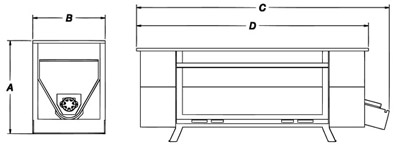

Overall Height (A) (inches)
27"
-
Overall Width (B) (inches)
21-1/2"
-
Overall Length (C) (inches)
74-1/2"
-
Overall Bucket Length (D) (inches)
68-1/2"
-
Weight
380 lb.
-
Auger Length (inches)
61-1/2"
-
Auger Diameter without Rubber (inches)
4"
-
Auger Diameter with Rubber (inches)
6-1/2"
-
Auger Flighting Spacing (inches)
4"

-
Capacity
1/2 yd (13.5 cubic ft.); up to 3/4 yard (20.25 cubic ft.) with optional hopper extension.
-
Hydraulic Requirements
12 GPM
2,000 PSI -
Mounting Options
Skid-Steer
-
Overall Height (A) (inches)
27"
-
Overall Width (B) (inches)
21-1/2"
-
Overall Length (C) (inches)
74-1/2"
-
Overall Bucket Length (D) (inches)
68-1/2"
-
Weight
380 lb.
-
Auger Length (inches)
61-1/2"
-
Auger Diameter without Rubber (inches)
4"
-
Auger Diameter with Rubber (inches)
6-1/2"
-
Auger Flighting Spacing (inches)
4"

-
Capacity
1/2 yd (13.5 cubic ft); up to 3/4 yard (20.25 cubic ft) with optional hopper extension.
-
Hydraulic Requirements
12 GPM
2,000 PSI -
Mounting Options
Skid-Steer
-
Overall Height (A) (inches)
27"
-
Overall Width (B) (inches)
21-1/2"
-
Overall Length (C) (inches)
74-1/2"
-
Overall Bucket Length (D) (inches)
68-1/2"
-
Weight
380 lb.
-
Auger Length (inches)
61-1/2"
-
Auger Diameter without Rubber (inches)
4"
-
Auger Diameter with Rubber (inches)
6-1/2"
-
Auger Flighting Spacing (inches)
4"

-
Capacity
1/2 yd (13.5 cubic ft.); up to 3/4 yard (20.25 cubic ft.) with optional hopper extension.
-
Hydraulic Requirements
12 GPM
2,000 PSI -
Mounting Options
Skid-Steer
-
Overall Height (A) (inches)
27"
-
Overall Width (B) (inches)
21-1/2"
-
Overall Length (C) (inches)
74-1/2"
-
Overall Bucket Length (D) (inches)
68-1/2"
-
Weight
380 lb.
-
Auger Length (inches)
61-1/2"
-
Auger Diameter without Rubber (inches)
4"
-
Auger Diameter with Rubber (inches)
6-1/2"
-
Auger Flighting Spacing (inches)
4"

-
Capacity
1/2 yd (13.5 cubic ft.); up to 3/4 yard (20.25 cubic ft.) with optional hopper extension.
-
Hydraulic Requirements
12 GPM
2,000 PSI -
Mounting Options
Skid-Steer
-
Overall Height (A) (inches)
27"
-
Overall Width (B) (inches)
21-1/2"
-
Overall Length (C) (inches)
74-1/2"
-
Overall Bucket Length (D) (inches)
68-1/2"
-
Weight
380 lb.
-
Auger Length (inches)
61-1/2"
-
Auger Diameter without Rubber (inches)
4"
-
Auger Diameter with Rubber (inches)
6-1/2"
-
Auger Flighting Spacing (inches)
4"

-
Capacity
1/2 yd (13.5 cubic ft.); up to 3/4 yard (20.25 cubic ft.) with optional hopper extension.
-
Hydraulic Requirements
12 GPM
2,000 PSI -
Mounting Options
Skid-Steer
-
Overall Height (A) (inches)
27"
-
Overall Width (B) (inches)
21-1/2"
-
Overall Length (C) (inches)
74-1/2"
-
Overall Bucket Length (D) (inches)
68-1/2"
-
Weight
380 lb.
-
Auger Length (inches)
61-1/2"
-
Auger Diameter without Rubber (inches)
4"
-
Auger Diameter with Rubber (inches)
6-1/2"
-
Auger Flighting Spacing (inches)
4"
