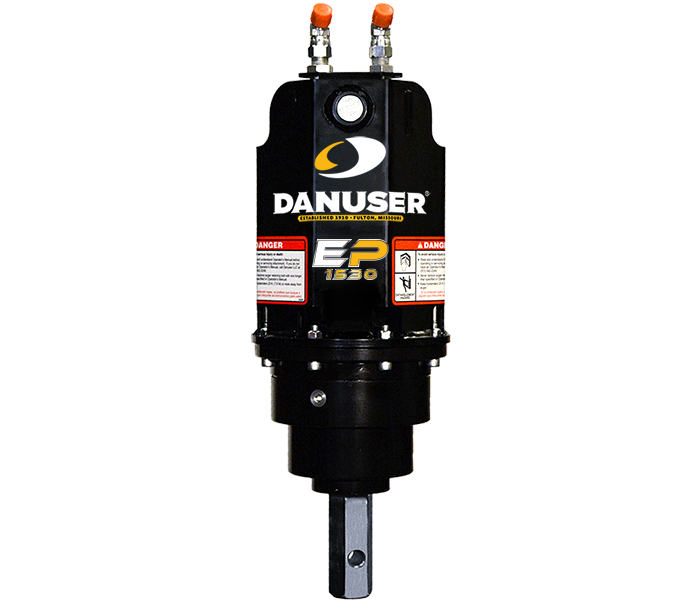

EP Series
Hydraulic Auger Drives
The EP Auger System is ideal for various industries and applications.
A robust, Danuser planetary manufactured to our engineering design, and a motor rated up to 3,500 PSI means greater torque than previous EP models. The planetary also features easily accessible check and fill plugs which means quick and easy maintenance. The output spindle is manufactured as a single piece, allowing us to offer a lifetime warranty covering output spindle pullout. Comes with auger retaining bolt.
FeaturesInnovative
Powerhouse
Danuser is one of only a handful of manufacturers who have their own planetary design. The result is a planetary with up to 42% more output torque strength than the competition.
Hose Routing
Motor hoses are routed out the top of the drive unit housing, secured with bulkhead nuts, allow deeper digging in tighter spots with better hose protection. All drive units ship with 45° fittings installed.
Mounts
Offerings include Skid-Steer, Mini-Skid-Steer, Tractor Front-End Loader, and Backhoe & Excavator.
Adjustable Carry Angle
Mounts feature an adjustable cradle with two positions for transporting, 15° and 30° angles. The 15° angle provides improved visibility while the 30° angle provides versatility for a range of auger diameters and lengths.
Output Spindle
Manufactured as a single piece, the Danuser planetary features a lifetime warranty protecting against output shaft pullout.
Options and Specifications
-
Gearbox Ratio
3.86:1
-
Max Hydraulic Back Pressure
1,500 PSI
-
Requirements
6 - 15 GPM up to 3,500 PSI
-
Max. Diameter Auger (inches)
24"
-
Gearbox Ratio
3.86:1
-
Max Hydraulic Back Pressure
1,500 PSI
-
Requirements
10 - 20 GPM up to 3,500 PSI
-
Max. Diameter Auger (inches)
30"
-
Gearbox Ratio
3.86:1
-
Max Hydraulic Back Pressure
1,500 PSI
-
Requirements
15 - 30 GPM up to 3,500 PSI
-
Max. Diameter Auger (inches)
36"
-
Gearbox Ratio
3.86:1
-
Max Hydraulic Back Pressure
1,500 PSI
-
Requirements
20 - 35 GPM up to 3,500 PSI
-
Max. Diameter Auger (inches)
36"
